MANHOLE COVERS FOR SMALL INSPECTION SHAFTS
DN315 - B125
PRODUCTS » MANHOLE COVERS FOR SMALL INSPECTION SHAFTS » DN315 – B125
MANHOLE COVERS IN PAVEMENTS AND PARKING LOTS
Circular sewage hatches DN315 of the B125 class used to cover inspection house manholes on foot paths or pedestrian zones, where they may occasionally be subject to car movement, as well as parking lots for passenger cars.

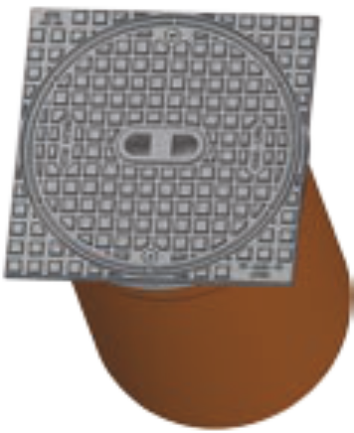

KPB1 Cast iron hatch without ventilation, square cast iron frame, without extension

Code: KPB1
Description: Secured with two screws, without hinge, without damping insert, without spring-locking of the hatch in the frame, without ventilation.
KPB150 Cast iron hatch without ventilation, square cast iron frame, with extension 500mm

Code: KPB150
Description: Secured with two screws, without hinge, without damping insert, without spring-locking of the hatch in the frame, without ventilation

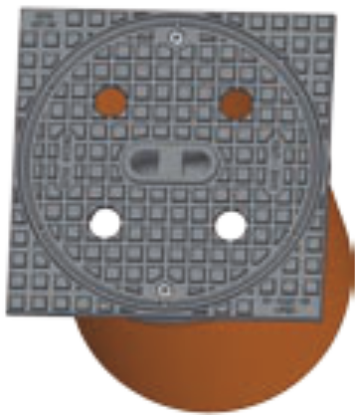

KPB2 Cast iron hatch with ventilation, square cast iron frame, without extension

Code: KPB2
Description: Secured with two screws, without hinge, without damping insert, without spring-locking of the hatch in the frame, with ventilation
KPB250 Cast iron hatch with ventilation, square cast iron frame, with extension 500mm

Code: KPB250
Description: Secured with two screws, without hinge, without damping insert, without spring-locking of the hatch in the frame, with ventilation

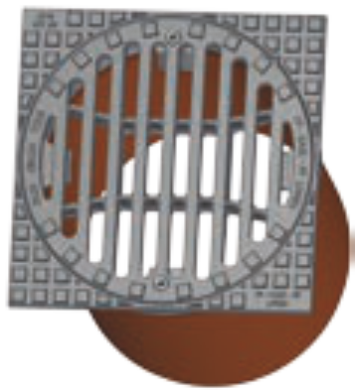

KPBM Inlet grate, square cast iron frame, without extension

Code: KPBM
Description: Secured with two screws, without hinge, without damping insert, without spring-locking of the hatch in the frame, inlet grate
KPBM50 Inlet grate, square cast iron frame, with extension 500mm

Code: KPBM50
Description: Secured with two screws, without hinge, without damping insert, without spring-locking of the hatch in the frame, inlet grate
